Selecting the right gauging system for your film or sheet extrusion line involves more than just picking a technology. It requires careful consideration of your specific needs and the environment in which the system will operate. To help you make the best decision, here are key questions to ask and a comprehensive checklist to guide you through the selection process. For a complete overview of inline measurement technologies and solutions for film and sheet extrusion, visit our Film and Sheet Thickness Measurement Solutions page.

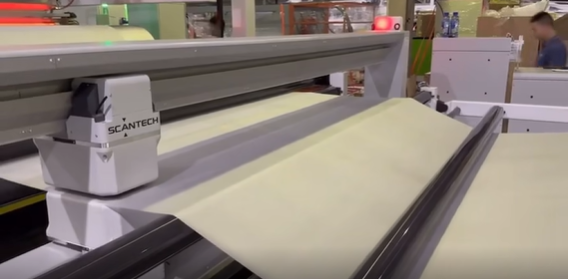

A Scantech x-ray scanner traversing a web.
Define Your Purpose
Before you dive into the technical aspects, it’s important to first define what you want to achieve with the gauging system. Consider the following:
- What are you measuring? Are you interested in measuring basis weight, thickness, or density? Or perhaps you need to measure individual polymer layers?
- How will you use the data? Will the measurements help you set machine parameters, provide audit data for reports, or fulfill a request from upper management?
- What’s the real goal? Sometimes, the true purpose of the purchase is not entirely clear. Is it driven by internal needs or external pressures?
By establishing the purpose early on, you can ensure that the measurement system you choose aligns with your plant’s goals.
Gather Key Information for the Supplier
Once you’ve defined your goals, it’s time to collect all the qualitative details that will be necessary for your gauging system supplier. Here’s a comprehensive checklist of essential factors to consider:
1. Polymer Composition:
- What is the polymer composition of the film or sheet? (e.g., PP, PE, PET, ABS, EVA, EVOH)
2. Measurement Parameters:
- What are the expected ranges for thickness, weight, or density?
3. Additives:
- Does the material contain heavy element additives like CaCO3 or TiO2? Are these additives evenly distributed? Will you need to profile and measure them?
4. Ink Composition:
- Does the film or sheet contain inks? Are they organic or metallic? Is the distribution of inks uniform?
5. Material Consistency:
- What percentage of the material is regrind? Is the regrind composition consistent throughout?
6. Recycled Materials:
- Is recycled polymer used? If so, is it of the same composition as the virgin material?
7. Coatings:
- Is the film or sheet coated with any substances (e.g., silicone) before measurement?
8. Edge Trim:
- Is the edge trim removed before or after measurement? This is important for extrusion die control.
9. Temperature Considerations:
- What is the temperature of the film or sheet at the measurement point?
- What is the ambient temperature around the gauge and HMI (Human Machine Interface)? Don’t forget to account for heat inside the electronics enclosures.
Installation and Interface Considerations
Once you have the necessary data, the next critical step is to determine the ideal installation location for the measurement system. Here are a few factors to consider:
- Gauge Location: Consider the line layout and available space for mounting the measurement system.
- Operator Interface Placement: Where will the operator interface of the gauge be located? Will it be near the production line or in a separate control room?
- HMI Location: Decide where the HMI will be situated. What type of HMI is preferred (e.g., panel-mounted screen, standalone cabinet)?
Additionally, consider if the measurement data will be used for automatic process control. For example:
- Can the system help with automatic die bolt control?
- Will the system provide inputs for line speed control or melt pump control?
These are important details that will impact both the installation and ongoing operation of the gauging system.
Locations of key machinery is important to decide early in the planning process.
Final Thoughts
Selecting the right gauging system requires careful planning and a thorough understanding of your material, process, and operational needs. By answering these key questions and compiling the right data, you’ll be well-equipped to make an informed decision and ensure that your measurement system supplier provides an accurate and tailored solution. If you’re evaluating real-time thickness control on your production line, consider using the Film & Sheet Measurement ROI Calculator to justify the investment and compare different technologies.
Need Help Choosing the Right System?
At Gauge Advisor, we specialize in helping facilities like yours choose the perfect measurement technology for extrusion and coating lines. If you’re evaluating systems for a production line, learn more about our film and sheet extrusion measurement solutions in the Western United States.
Gauge Advisor is the authorized sales partner for Scantech measurement and control systems supporting manufacturers with equipment selection, process optimization, and system integration..
By: Matthew BakerFounder, Gauge Advisor LLC
