Extrusion Calculators & Process Engineering Tools

Start with the question the line needs answered: nominal output, cooling path, conveying demand, melt stability, filtration strategy or measurement setup. Each tool organizes a useful first pass and makes clear what still needs application review.

Choose by process stage Browse all engineering tools
Choose by process question

The math is useful when the basis matches the line

This collection stays focused on extrusion. The complete Tools Hub remains the broader directory for ROI, coating, medical-device, wire-and-cable and conversion tools.

Material delivery

How much conveying capacity does the route need?

Use peak receiver demand and the most restrictive path—not only average extruder consumption.

Go to material handling → Output & thermal load

What rate or cooling path does the product imply?

Match geometry, density and speed, then keep line capacity separate from the nominal calculation.

Go to output & cooling → Melt delivery

Which pump or filtration architecture should be reviewed?

Start with polymer, rate, pressure, contamination and continuity rather than one catalog model.

Go to melt & filtration → Measurement

Can the wall be measured, and how should OD be verified?

Screen the geometry first, then confirm the sensor, samples, reference standards and working method.

Go to measurement →
Planning result, not equipment capacity. A calculated mass rate, cooling length, airflow bracket or sensor-range match does not prove that the complete extrusion line can run the condition.
Read the limits
Seven core extrusion tools

Use the tool closest to the decision

Every card shows the practical question, the main inputs and the boundary that still needs confirmation. Open only the tool that matches the current stage.

Move material to the line

Translate peak transfer demand and route geometry into a practical resin-conveying starting point.

Stage 01 · Feed
Sizing calculator 01

Resin Conveying Vacuum Pump Sizing

Use this when: you need an airflow, vacuum and Advanced Blending Solutions pump starting bracket for the most demanding material route.

Bring

Peak fill rate, material, actual line ID, pipe, flex, lift, bends and simultaneous demand.

See

Estimated CFM, inlet vacuum, equivalent distance, air velocity and nominal pump bracket.

One-route screen only. Final sizing requires the blower curve, pickup, receiver, filtration, leaks, sequencing, altitude, controls and duty cycle.

Open vacuum-pump calculator Explore resin conveying systems

Set output, form and cool

Relate product geometry to nominal mass flow, then estimate the cooling path for applicable tubing extrusion.

Stage 02 · Form
Production calculator 02

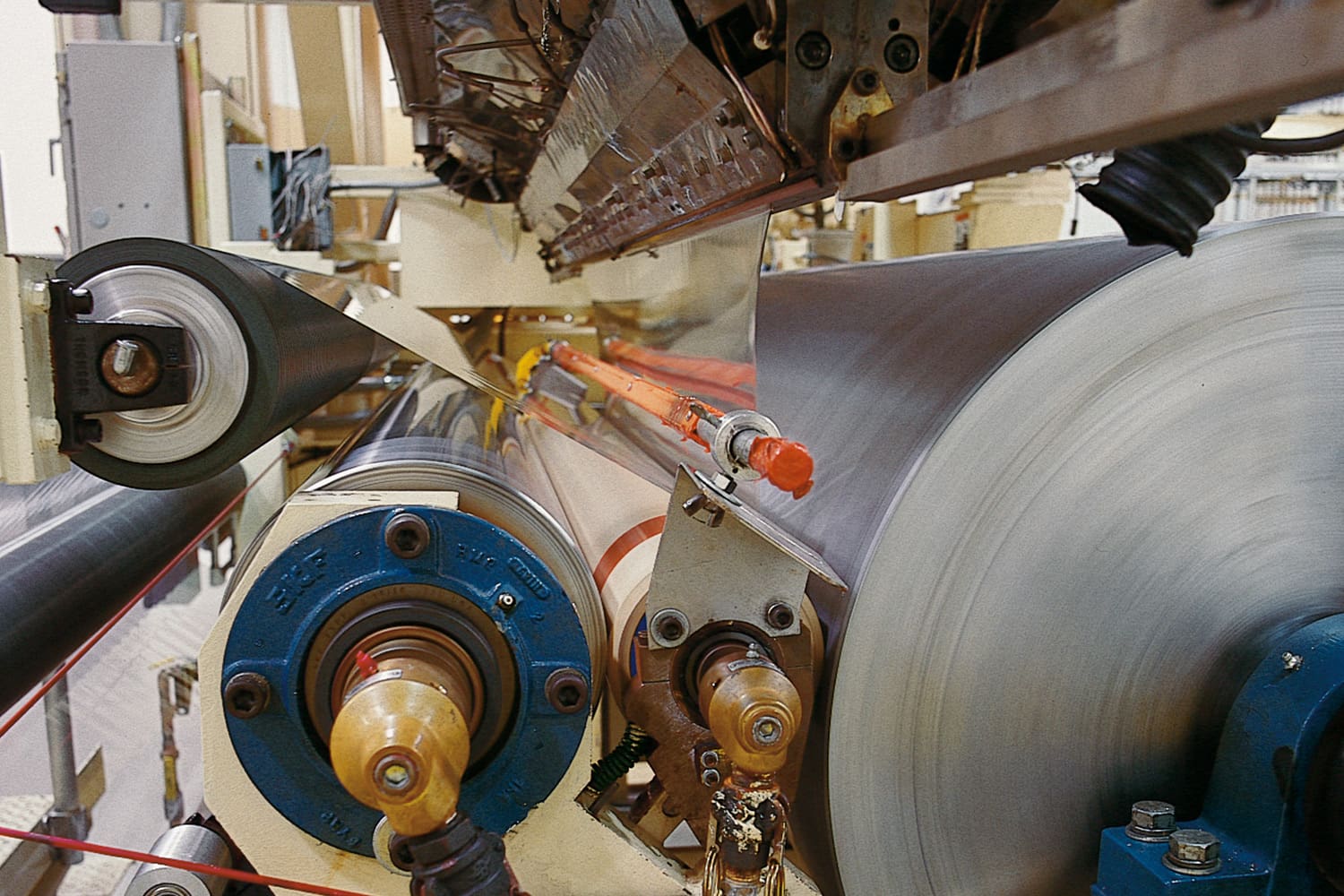

Extrusion Throughput & Line Speed

Use this when: you need nominal throughput from speed—or required speed from target throughput—for a defined product cross-section.

Bring

Product geometry, dimensions, product count, matching density and line speed or target rate.

See

kg/hr, lb/hr, line speed, polymer area and mass per unit length.

Geometry, velocity and density must describe the same product state. Do not use loose pellet bulk density or treat the result as extruder capacity.

Open throughput calculator Explore throughput measurement & control
Thermal calculator 03

Tubing Cooling Tank Length

Use this when: you need a preliminary effective cooling path, residence time and physical tank-length estimate for a tubing case.

Bring

OD, wall, speed, polymer, temperatures, safety factor, cooling stages, passes and water conditions.

See

Cooling path, physical tank length, residence time, heat removal and planning water flow.

Representative thermal properties and simplified heat transfer cannot capture every resin, crystallization, filler, drawdown, circulation or tank effect.

Open cooling-length calculator Explore downstream tubing measurement

Stabilize and filter the melt

Screen the melt-pump family and filtration architecture before model sizing, integration and quotation.

Stage 03 · Melt
Sizing selector 04

Melt Pump Sizing & Selection

Use this when: you need the MAAG melt-pump family worth reviewing for a thermoplastic, PVC, recycling, filled-polymer or elastomer process.

Bring

Polymer, application, throughput, pressure conditions, contamination, filler, wear and shear concerns.

See

Starting pump family, rationale, alternate path and capability snapshot.

Family selection is not displacement or model sizing. Final fit needs rheology, density, pressure profile, efficiency, rpm, torque, wear and integration review.

Open melt-pump selector Explore melt pumps & filtration
Equipment selector 05

Polymer Filtration & Screen Changer

Use this when: you need to separate manual, discontinuous, continuous and self-cleaning filtration paths around the actual process.

Bring

Process, polymer, contamination, uptime need, throughput, micron target, pressure and maintenance goal.

See

Preliminary family path, alternate options, warnings and remaining application questions.

A fast screen change is not always uninterrupted flow, and a continuous screen changer is not automatically a self-cleaning filter.

Open filtration selector Review polymer-processing systems

Measure and verify quality

Screen ultrasonic wall-measurement geometry and plan reference sizes for a controlled laser-micrometer workflow.

Stage 04 · Measure
Measurement selector 06

UltraGauge Transducer Selector

Use this when: you need to see whether one published LaserLinc model-and-frequency row covers the complete OD and wall envelope.

Bring

Material family plus minimum and maximum OD and wall thickness in inches or millimeters.

See

Published-range starting model, frequency path, inferred ID envelope, alternates and warnings.

A geometry match is not acoustic validation. Material response, layers, surface, temperature, water coupling, centering, alignment and representative samples still govern.

Open ultrasonic selector Explore ultrasonic wall measurement
Verification planner 07

Laser Micrometer Calibration Pin Planning

Use this when: you need a practical reference-size plan across the OD range and a preliminary LaserLinc measurement-window screen.

Bring

Minimum and maximum OD, optional buffer, planning ratio and available or catalog standards.

See

Theoretical, catalog or available-standard sets plus a range-only micrometer model screen.

The tool plans reference sizes; it does not calibrate the gauge. The spacing ratio is a Gauge Advisor heuristic—not an ISO, ASTM, NIST or manufacturer rule.

Open calibration-pin planner Explore laser micrometers
Continue from the calculation

Route the result into the actual application

The same nominal output can lead to very different equipment decisions. Continue with the path that matches the material network or product geometry.

Upstream system

Resin Handling Selector

Organize conveying, drying, blending, storage, routing, controls and recovery requirements.

Build the material path → Tubing extrusion

Medical Tubing Measurement

Compare inline, bench, ultrasonic, full-length and surface-inspection workflows.

Choose the tubing path → Wire & cable extrusion

Wire & Cable Measurement

Screen OD, ovality, wall, concentricity, surface, FFT/SRL and inspection architectures.

Choose the wire path → Film, sheet & flat web

Web Gauging Systems

Review scanner frames, measurement technologies, controls and visual-inspection integration.

Explore web gauging → Blown film

Cooling & Gauge Control

Connect output targets to air-ring cooling, profile correction, IBC and bubble control.

Explore blown-film systems →

Is the line capable—or is the average hiding the variation?

Use the Cpk/Ppk calculator when the next question is process centering, capability, non-conformance or the cost of variation rather than equipment sizing.

Check process capability
Use the result responsibly

Keep the calculation and equipment decision separate

A transparent first pass is valuable. The next step is confirming that the product, material, line, controls and operating limits can support the condition.

01

Match the product state

Use geometry, speed and density from the same location and condition. Finished dimensions do not normally pair with loose bulk or melt density.

02

Use the operating range

Bring minimum, normal and maximum conditions when equipment must cover multiple products, rates, pressures or recipes.

03

Separate math from capacity

A formula can establish the target. Extruder, die, pump, cooling, haul-off, winding, conveying and measurement limits still govern.

04

Validate the working method

Confirm representative materials, samples, curves, drawings, trials, controls and acceptance criteria before final selection.

Resin-handling ROI Melt-pump & filtration ROI Web-gauging ROI Blown-film cooling ROI
Extrusion tool questions

What the calculators can—and cannot—answer

The tools narrow a planning question. Final equipment, performance and process capability still depend on the complete application.

Does calculated throughput predict extruder capacity?

No. The throughput calculator solves a mass balance from product area, speed and matching density. Extruder output, screw design, motor load, die, melt pressure, cooling, haul-off, winding and product quality must support that rate separately.

Should I use melt density, finished density or pellet bulk density?

Use the density that matches the state and location of the entered geometry and velocity. Finished dimensions normally use finished or apparent density. Melt density belongs with melt-state geometry. Loose pellet bulk density is for material-handling calculations, not product mass-flow geometry.

Is the cooling-tank result a final tank design?

No. It is a preliminary thermal estimate using representative material properties and simplified heat transfer. Resin grade, crystallization, fillers, drawdown, vacuum sizing, spray or immersion effectiveness, water warming, circulation and actual line behavior can change the requirement.

Do the melt-pump and filtration tools select a final model?

No. They identify a family or architecture to review. Final sizing requires current material data, rheology, pressure and temperature profile, contamination behavior, throughput range, filtration area, wear, controls, mechanical integration and manufacturer engineering.

Does an ultrasonic range match guarantee wall measurement?

No. A published OD and wall-range match is the geometry screen. Acoustic velocity, attenuation, layers, surface condition, temperature, water coupling, bubbles, centering, alignment, sample stability and the required uncertainty still need representative testing.

What should I send for an extrusion application review?

Send the product geometry and tolerances, polymer and construction, normal and maximum rate, line speed, temperatures, pressure information, contamination or quality problem, cooling arrangement, current equipment, layout or line drawing, controls objective and representative production data or samples when available.
