Medical tube extrusion is a complex manufacturing process that demands extremely precise diameter and wall thickness measurement. Any variation, whether it’s poor concentricity, excessive diameter variation, visible or microscopic defects, can have dire consequences. These critical products need reliable diameter & wall measurement systems both during extrusion and device assembly.
For a complete overview of systems used in medical extrusion lines, see our medical tubing extrusion measurement solutions page. Here are several advanced technologies that can help ensure quality and consistency, whether you are working with pebax, nylon, polypropylene, or other plastics:
1. Ultrasonics: Wall Thickness and Concentricity
As the tube leaves the extruder and enters the quench tank, inline ultrasonic wall thickness measurement systems become essential. Typically, 4 or 8 ultrasonic transducers are strategically positioned around the tube to ensure accurate readings. Proper centering is crucial, especially for smaller diameters.
If the tube shifts within the cooling tank, the ultrasonic transducers may not remain perfectly aligned with the product, which can affect measurement stability. If you want to learn how modern systems automatically maintain transducer alignment, see our guide on how to keep ultrasonic transducers centered on extruded tubing.
The ultrasonic system provides precise measurements of wall thickness and concentricity, enabling extruders to detect any variations. This technology operates at remarkable speeds, taking up to 2,000 measurements per second, and can measure wall thickness down to ±0.001” (25 microns). With repeatability as tight as +/- 0.000040” (1 micron), ultrasonic technology offers unmatched precision when measuring wall thickness and concentricity, ensuring reliable diameter and wall measurements throughout the entire process. Want to see if your tubing can be measured with ultrasonics? Use our Ultrasonic Transducer Selector Tool. All you need is your material type, OD range, and Wall range.
2. Laser Micrometers: Outside Diameter, Inside Diameter, and Ovality
Once the tube passes through the quench tank and any remaining water is wiped away, a laser micrometer is used in tube extrusion measurement for outside diameter, inside diameter, and ovality. This shadow-based technology is essential for calculating tube dimensions with high accuracy. While most systems use one (1) triple-axis micrometer post-quenching, placing two (2) triple-axis micrometers can help detect even the smallest diameter variations, which might indicate a flaw. The laser micrometer is vital for precise outside diameter and wall measurements of the tube.
Laser micrometers like the LaserLinc Triton 312 can perform up to 12,000 measurements per second, with an extraordinary two-second repeatability of +/- 0.000005” (0.125 micron). The software uses a programmed delay based on line speed to ensure the micrometer measures the exact same point on the tube as the preceding ultrasonic system.
Want to learn more about calibration best practices and sizing the right pins for your micrometer? Use our Calibration Pin Selector tool.
If you experience unstable diameter readings or communication problems, our laser micrometer troubleshooting guide covers common causes and solutions.
3. FlawSense: Defect & Flaw Detection
LaserLinc’s innovative FlawSense technology takes defect detection to the next level. By using laser triangulation sensors and cameras, FlawSense creates a high-speed 3D surface map of the tube as it moves through the measurement head. This allows for 360-degree detection of physical defects, including slits, cracks, carbons, intrusions, protrusions, and other anomalies along the tube’s length.
Once measurements are taken, the system generates a 3D model of the tube for the operator to review. The operator can then assess whether the tube meets manufacturing criteria based on the type, size, and number of defects. This system addresses the limitations of human inspection, which is subjective and prone to errors. A fatigued inspector at the end of their shift is less likely to catch defects compared to one at the start of their day—FlawSense ensures consistency and reliability in the defect and wall measurement process.
Automatic Line Adjustments: The Power of Closed-Loop Control
Data collection from measurement systems is just one part of the equation when it comes to maintaining good product quality. The real challenge lies in how quickly an operator can adjust the extruder settings to bring the product into specification. The process becomes a complex balancing act, adjusting the puller speed, extruder air pressure, and extruder RPM simultaneously. Achieving this balance requires significant experience, and even experienced operators can spend anywhere from 15 to 30 minutes making adjustments before the product is within spec. Manufacturers waste valuable material during this time, including plastic tubes that don’t meet the desired dimensions.

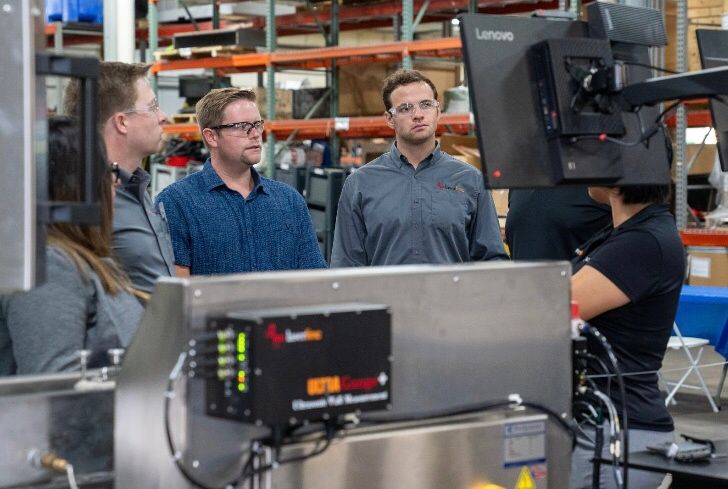

This is where closed-loop control software comes into play. The software automatically adjusts speed, air pressure, and RPM to achieve the desired tube dimensions much more efficiently. Modern extrusion lines typically communicate through the OPC-UA protocol, although older systems rely on motorized potentiometers (MOP) or DC voltages. With closed-loop control, the extruded tube can meet specifications in just a couple of minutes, sometimes even less! This is a significant improvement in both time and material waste. LaserLinc, Inc. has partnered with U.S. Extruders to perfect this closed-loop software, bringing real-time efficiency to extrusion processes.
Take It Further with the Profit Maximizer
Once the tube is within specification, LaserLinc’s Profit Maximer software can take things even further. By continuously comparing process capability (Cpk) with product specifications, Profit Maximer automatically optimizes the extrusion process in real-time. This ensures minimal material waste. For instance, when the process proves to be stable, the software can adjust the nominal thickness toward the lower limit threshold. This reduces material consumption without compromising quality, thus enhancing diameter and wall measurements of the product.
This combination of closed-loop control and real-time optimization software not only enhances efficiency but also drives significant cost savings. The result equates to minimized waste and improved overall product consistency.
Off-Line Testing and Future Developments
Are you looking for these applicaiton in off-line setups? Good news. Each of these technologies can be used in offline benchtop settings. Gauge Advisor, in partnership with LaserLinc, Inc., is committed to providing advanced measurement and inspection systems for medical tube manufacturing. LaserLinc, based in Fairborn, Ohio, is the market leader for medical tube measurement systems. The company provides exceptional customer service and continuous research and development to introduce new products and improve existing ones.
By integrating these technologies into the extrusion process, manufacturers can ensure that their extruded medical tubes meet the highest standards of quality and precision through consistent diameter and wall measurement. All while reducing the risk of defects and improving overall product reliability.
Gauge Advisor supports medical device manufacturers across the Western United States with inline tube measurement and inspection systems. We are the authorized sales and service partner for LaserLinc measurement systems supporting manufacturers with equipment selection, process optimization, and system integration.
