Modern wire and cable manufacturing demands strict quality control to maintain tight diameter and coating tolerances, electrical performance requirements, and customer expectations. Consistent diameter, uniform coatings, and defect-free insulation are essential for delivering reliable products while controlling material costs and minimizing scrap.
Effective wire and cable measurement solutions help production teams monitor critical dimensions, identify defects early, and maintain process stability. All in real time and on the production line. For an overview of these technologies, see our wire and cable measurement solutions page.
This post highlights practical measurement strategies for:
- Diameter and ovality control
- Coating thickness measurement
- Concentricity and eccentricity verification
- Inline surface defect detection

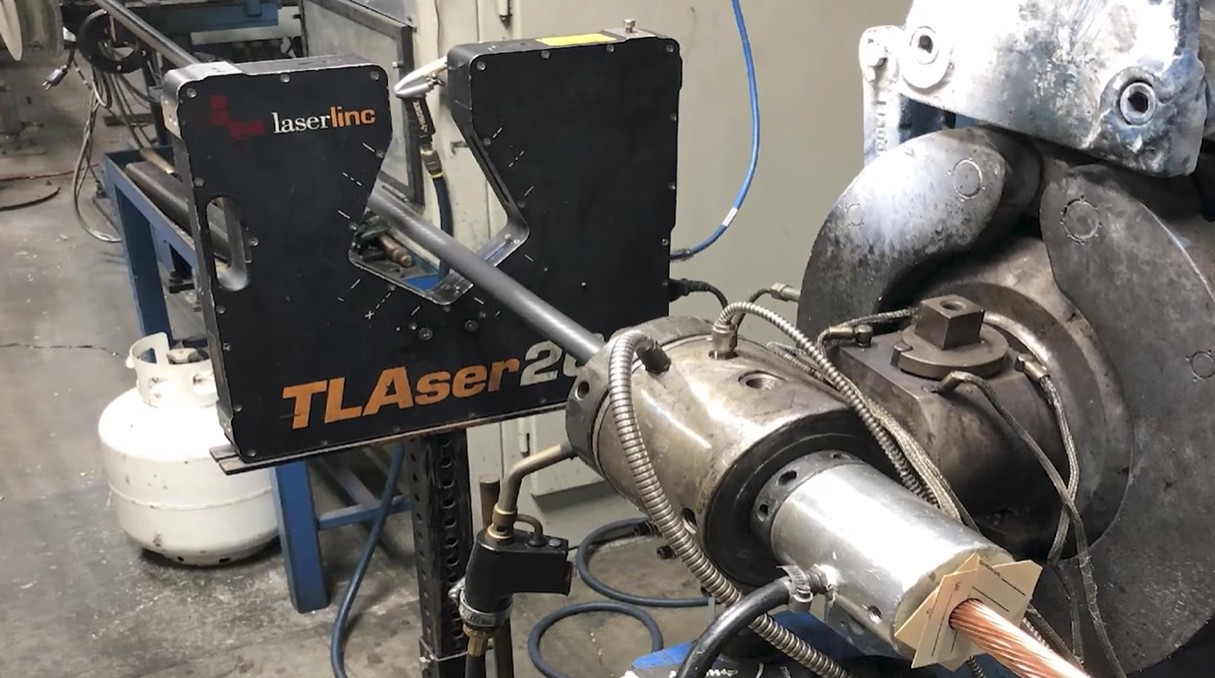

A LaserLinc dual-axis micrometer measuring outside diameter (OD) after coating has been applied.
Laser Micrometers for Diameter and Ovality
Laser micrometers are a key wire diameter measurement technology for capturing outer diameter quickly and accurately. Using a non-contact laser beam, they deliver:
- High-speed measurement suitable for fast production lines
- Sub-micron repeatability for strict tolerances
- Real-time feedback control loops for process adjustments
Dual and triple-axis models also record ovality (out-of-roundness), ensuring coated cables meet specifications. Maintaining this level of accuracy requires proper micrometer verification. Engineers can simplify this process using our Calibration Pin Selector Tool when selecting gauge pins for diameter calibration.
An illustration of a triple-axis laser micrometer measuring a coated cable. Courtesy: LaserLinc Inc.
Software Features for Wire & Cable
Modern laser micrometers include valuable software tools to improve process control:
Structural Return Loss (SRL)
For communication cables, diameter variation affects SRL performance. In production, SRL is a critical measure of signal integrity. SRL quantifies how much signal is reflected back toward the source due to impedance variations along the cable. These reflections degrade data transmission quality and can lead to certification failures.
Diameter variations, inconsistent ovality, or irregular twisting can all cause changes in impedance, resulting in higher reflections and worse SRL performance.
Max/Min Measurement for Twisted Pair
Instead of showing only average diameter, Max/Min display retains the highest and lowest values. This is especially useful for twisted pair cables, helping to spot irregular twists and optimize stranding to prevent electrical issues. The Max and/or Min value of a production run is continuously displayed on the operator screen. In addition, it can trigger an alarm if a Max or Min value below the spec limit is detected.
LaserLinc Total Vu software screen showing OD and wall thickness measurements for a wire extrusion coating line. This setup uses three triple-axis micrometers to monitor the bare wire, the hot diameter after extrusion, and the cooled diameter before the reel.
Measuring Coating Thickness and Concentricity
Wire and cable measurement solutions also address coating and insulation quality. Two common methods are:
Sequential Laser Micrometer Measurements
Measure the bare conductor first, then the insulated product. Software calculates coating thickness by subtraction.
Sequential dual-axis laser micrometers. One micrometer measures raw wire while the other measures coated wire. Coated is subtracted from Raw to get coating thickness. Courtesy: LaserLinc Inc.
Ultrasonic Systems
Ultrasonic systems measure both inner and outer diameters simultaneously to calculate insulation thickness and concentricity. This allows real-time monitoring of insulation thickness and concentricity (or eccentricity), helping maintain uniform coatings.
Note: Ultrasonics are needed for concentricity measurement or when inline bare-wire measurement isn’t possible.
The UltraGauge+ ultrasonic measurement system for measuring coating, concentricity, and eccentricity. Courtesy: LaserLinc Inc.
Inline Defect Detection with LaserLinc FlawSense
Diameter measurement alone cannot detect every surface defect in wire and cable production. Surface flaws like lumps, neckdowns, or inclusions can lead to failures or customer rejections.
LaserLinc’s FlawSense system adds inline surface defect detection to your quality strategy. It uses high-speed laser triangulation and cameras to:
- Detect and classify defects as they occur
- Log defect locations for marking or removal
- Calculate outside diameter
- Provide actionable data for reducing scrap and rework
One of the largest benefits of FlawSense is that it eliminates dependence on operator inspection. This process is usually done on a rewind inspection line. It can be dangerous and operator-subjective.
The LaserLinc FlawSense is a defect detection and diameter measurement solution. Courtesy: LaserLinc Inc.
Integrated Wire and Cable Measurement Solutions
Meeting modern quality expectations in wire and cable production requires multiple tools. Integrated wire and cable measurement solutions combine:
- Laser micrometers for diameter and ovality with advanced software tools like SRL tracking and Max/Min measurements.
- Ultrasonic systems for accurate coating thickness and concentricity measurement
- Inline defect detection systems like FlawSense to identify surface flaws early
Together, these tools help production teams reduce scrap, improve process stability, and deliver consistent, high-quality products. You can estimate potential material savings and process improvements using our Wire and Cable Measurement ROI Calculator. Quality engineers can also evaluate process capability using our CPK / PPK Process Capability Calculator.
Ready to Upgrade Your Wire and Cable Measurement Solutions?
At Gauge Advisor, we’re proud to partner with LaserLinc, an industry leader in precision measurement technology for wire and cable production.
By choosing LaserLinc, you will receive:
- Precision laser micrometers with software features for wire & cable
- Ultrasonic systems for precise coating and concentricity measurement
- Inline defect detection with FlawSense for real-time quality assurance
- Immediate U.S.-based support and engineering expertise (Fairborn, Ohio)
- Industry-leading 4-year warranty
LaserLinc’s flexible, modular solutions integrate easily into existing lines and scale to your production goals. View their video on wire & cable solutions here:
Gauge Advisor supports wire and cable manufacturers in California and across the Western United States with precision measurement solutions for diameter, coating thickness, and defect detection.
We are the authorized sales and support partner for LaserLinc measurement systems supporting manufacturers with equipment selection, process optimization, and system integration.
If you’re evaluating a measurement system for your wire or cable line, request application guidance using the form below.
