Updated March 10, 2026
Whether you’re running a cast, blown, or oriented film extrusion line, production isn’t cheap! Between rising resin costs, increasing energy prices, and stringent customer demands, the pressure is on to do more with less. Smart processors know that the right film extrusion equipment upgrades equate to printing money!
In this post, we’ll break down four technologies that consistently deliver high ROI for film extrusion lines:
- Continuous gravimetric blenders
- Extrusion melt pumps
- Thickness measurement with automatic die bolt control
- Web tension control strain gauges
For deeper insights into these technologies, explore our measurement and process control solutions page.
Let’s explore how each solution pays for itself well within a year starting from upstream to downstream!

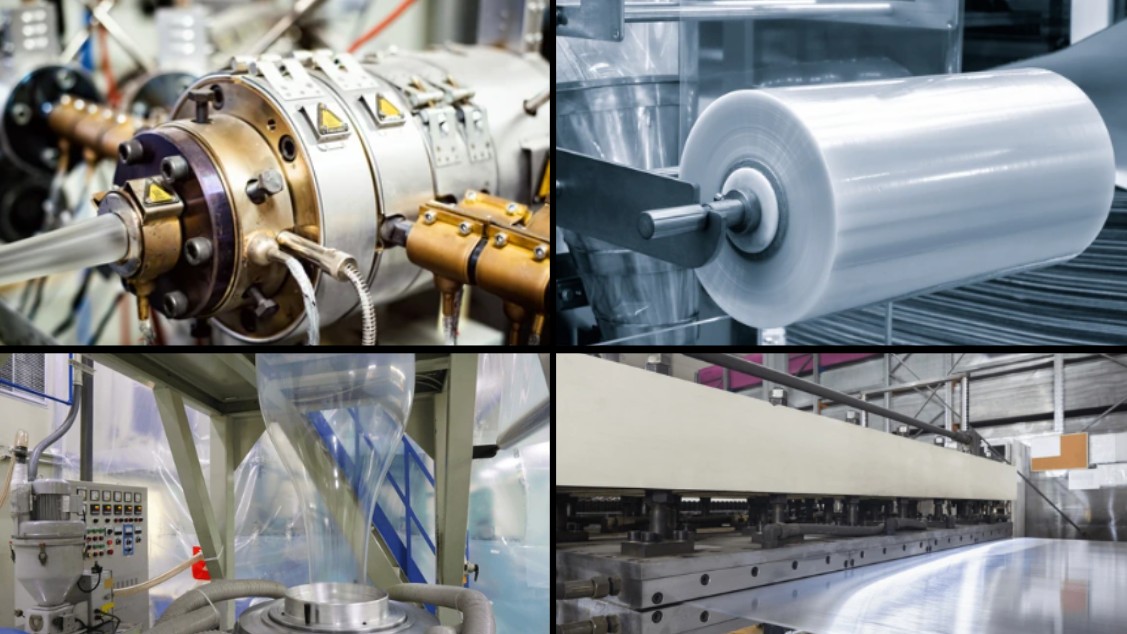

Collage of different types of plastic extrusion processes. Source: Gauge Advisor LLC.
1. Continuous Gravimetric Blenders: Precision Pays Off
It all starts with the blend! Manual batch mixing and volumetric feeders can’t keep up with the demands of modern extrusion. A continuous loss-in-weight gravimetric blender ensures that every gram of resin, regrind, and additive is dosed with pinpoint accuracy. Explore more options on our resin conveying and blending solutions page.
💰 ROI Example (Multi-Component):
Let’s say you’re running a 3-layer blown film line at 1,200 lb/hr with a blend of virgin resin, regrind, and two additives (color masterbatch and slip/anti-block). Here’s a typical formulation:
- 70% Virgin @ $1.10/lb
- 25% Regrind @ $0.10/lb
- 3% Color MB @ $8.00/lb
- 2% Slip Additive @ $5.00/lb
Even a ±1% deviation in dosing accuracy per component (which is common with volumetric or manual setups) can result in:
- Overuse of costly additives ($12,000/year in waste)
- Underuse of regrind ($8,000/year lost opportunity)
- Inconsistent film quality leading to scrap and downtime ($20,000+/year)
You can estimate potential material savings using our Resin Conveying and Blending ROI Calculator. When you add it all up, a gravimetric blender could conservatively save $40,000–$60,000 per year while also improving product consistency. That’s not including the labor savings from reduced operator intervention. With an auto-cleanout option, no operator time is required!
👉 Read more: Blenders and Thickness Gauges: The Real Profit Drivers in Film Extrusion

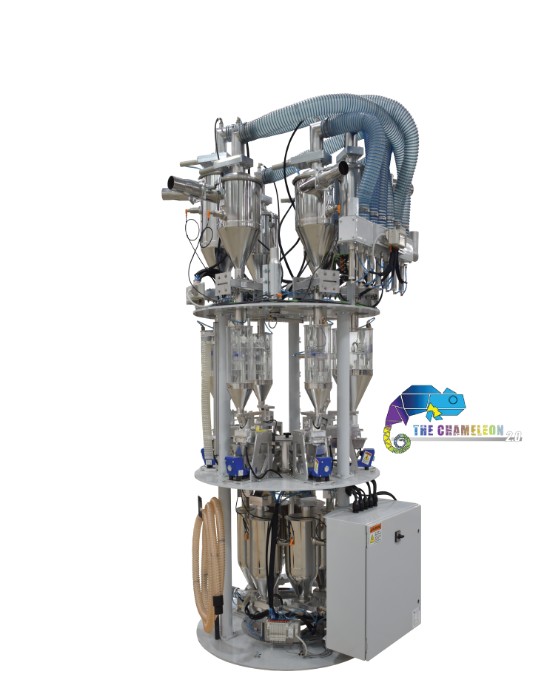

The Chameleon 2.0 Auto Cleanout Blender from Advanced Blending Solutions.
2. Extrusion Melt Pumps: Higher Throughput & Constant Pressure
If you’re relying solely on extruder barrel pressure or old melt pump technology to push molten polymer through the die, then it’s time for an upgrade! An extrusion melt pump decouples pressure generation from the screw, leading to:
- Longer extruder life
- More stable output flow
- Energy savings and longer screw life
Learn more about these technologies on our polymer filtration and melt pump solutions page.
💰 ROI Example:
In one real-world case, a film line running 2,200 lb/h across 8,000 production hours/year showed a 1% reduction in pressure fluctuations after installing a MAAG melt pump. That slight improvement in process stability enabled tighter film tolerances and reduced material waste. This yielded $80,000 in annual material savings.
That’s a solid ROI on a melt pump that typically pays for itself in a matter of months. Engineers can estimate potential output and resin savings using our Extrusion Melt Pump ROI Calculator.
👉 Learn how it works: Extrusion Melt Pumps: How Maag Pumps Improve Output and Product Consistency
Cutaway view of MAAG x6 melt pumps: one configured for virgin polymer processing (left) and the other optimized for recycled polymers (right). Courtesy: MAAG
3. Thickness Gauging with Auto Die Bolt Control: Stop Giving Away Product!
Are you making your film thicker than necessary “just to be safe”? A thickness measurement system with automatic die bolt control lets you get to spec quickly and consistently. Learn more about these systems on our film and sheet extrusion measurement solutions page.
💰 ROI Example:
If you’re producing 1,000mm-wide film and over-gauging by 5 microns. That could be $50,000+ in annual material waste, depending on resin cost and throughput.
Modern systems like those from Scantech offer:
✅ Real-time profile visualization
✅ Closed-loop die bolt control & I/O roll speed control
✅ Multi-sensor measurement technology (thickness, weight, additive %, etc)
You can estimate potential resin savings using our Film Thickness Measurement ROI Calculator.
👉 Dive deeper:
- When Should You Install a Thickness Measurement System?
- Why Scantech Leads the Way in Film & Sheet Extrusion Measurement Systems
A Scantech measurement system for cast film. The thickness scanner sends signals to automatically adjust the die lip (bolt controller) and line speed (I/O box) based on target film thickness specs.
4. Web Tension Control: Maximize Roll Quality
A perfect film can be ruined by poor winding. Tension sensors and controllers ensure web stability from casting through take-up.
FMS tension strain gauges provide:
- Accurate measurement across all web widths
- Responsive closed-loop feedback
- Superior overload protection
- Improved roll formation and reduced breaks
💰 ROI Example:
Imagine a cast film line producing 50-inch-wide rolls at 1,200 ft/min, running 6 days/week, 24 hrs/day.
Without accurate tension control, even minor fluctuations during winding can cause defects like telescoping or wrinkling. Learn more about tension control systems on our film and sheet extrusion measurement solutions page. If tension issues result in:
- 1 roll/week being scrapped at $300 per roll, that’s:
- $300 × 50 weeks = $15,000/year in scrap losses
Add just 10 minutes/day of downtime for tension adjustments or restarts. At an estimated $1,000/hour in lost production time, that adds another:
- (10 min/day ÷ 60) × $1,000/hr × 6 days/week × 50 weeks = $50,000/year in lost uptime
Total potential annual savings: ~$65,000
Well-engineered FMS strain gauges that communicate back to your PLC dramatically reduce these losses by stabilizing web tension from casting to winding.
👉 More details: Why FMS Tension Sensors Outperform the Competition
FMS web tension strain gauge to monitor web tension. Courtesy: Force Measuring Systems (FMS).
Key Takeaways
Smart equipment upgrades can significantly improve profitability in film extrusion.
- Gravimetric blenders reduce additive waste and improve blend accuracy
- Melt pumps stabilize pressure and improve throughput
- Thickness gauges with die bolt control reduce over-gauging
- Web tension systems prevent winding defects and downtime
Together, these technologies help extrusion plants reduce scrap, tighten process control, and improve long-term profitability.
Next Steps: Upgrade Smarter
Whether you’re building a new line or retrofitting an existing one, smart upgrades from trusted suppliers can deliver significant savings:
- Advanced Blending Solutions – gravimetric blending and material handling
- MAAG – extrusion melt pumps
- Scantech – inline thickness and profile measurement
- FMS – tension control and guiding systems
The teams at these companies dedicate their careers to understanding your process and developing custom solutions that fit your plant’s specific needs.
Let’s Talk About Your Line
Gauge Advisor supports film, sheet, and pipe extrusion manufacturers in California and across the Western United States with measurement and process control solutions.
We are the authorized sales and service partner for Scantech, Force Measuring Systems (FMS), MAAG, and Advanced Blending Solutions supporting manufacturers with equipment selection, process optimization, and system integration.
If you’re evaluating equipment upgrades for your film or sheet extrusion line, request application guidance using the form below.
By: Matthew BakerFounder, Gauge Advisor LLC
