When Should You Install a Thickness Measurement System on a Film or Sheet Extrusion Line?

Updated March 10, 2026

For manufacturers in the plastic film and sheet extrusion industry, tight control over film or sheet thickness isn’t just a quality issue; it is also a financial one. Whether you’re producing multilayer packaging film or thick thermoformable sheet, knowing exactly when to invest in a web gauging system can make the difference between high profitability and costly waste. For an overview of available technologies and system configurations, see our film and sheet extrusion thickness measurement solutions page.

📏What is a Web Gauging System?

A web gauging system, also known as a thickness measurement system, provides real-time, non-contact measurement of film or sheet thickness across the web. Technologies such as x-ray, gamma, beta, laser, and infrared are common in web gauging. These systems either feed data into closed-loop line controls or display thickness profiles for an operator to monitor. Want to learn more about the pros and cons of each individual sensor technology in more depth? Want to learn more about the pros and cons of each individual sensor technology in more depth? See our guide to web gauging technologies used in extrusion and coating lines.

A plastic film or sheet extrusion line with thickness gauging, automatic die bolt control, and closed-loop line speed control. Courtesy: Scantech

📈Why Web Gauging Matters

In an uncontrolled line, standard deviation in thickness can range upwards of 5% of target value. This leads to two outcomes:

• Scrap and off-spec rolls that must be reprocessed, discarded, or sold for pennies on the dollar.
• Excessive overpacking (i.e., producing thicker film to ensure minimums are met), which wastes expensive resin.

For example, a line targeting 2.0 mils thickness with a ±0.1 mil spec tolerance might end up running at 2.1 or 2.2 mils just to stay safe. That 0.1-0.2 mils extra adds up fast.

With a gauging system and process optimization, manufacturers can achieve:

• Standard deviation of less than 1%
• Cpk values >1.67 (demonstrating excellent process capability)
• Ppk values >1.5 (showing long-term performance stability)

These statistical improvements translate directly into reduced scrap, tighter process control, and better customer satisfaction.

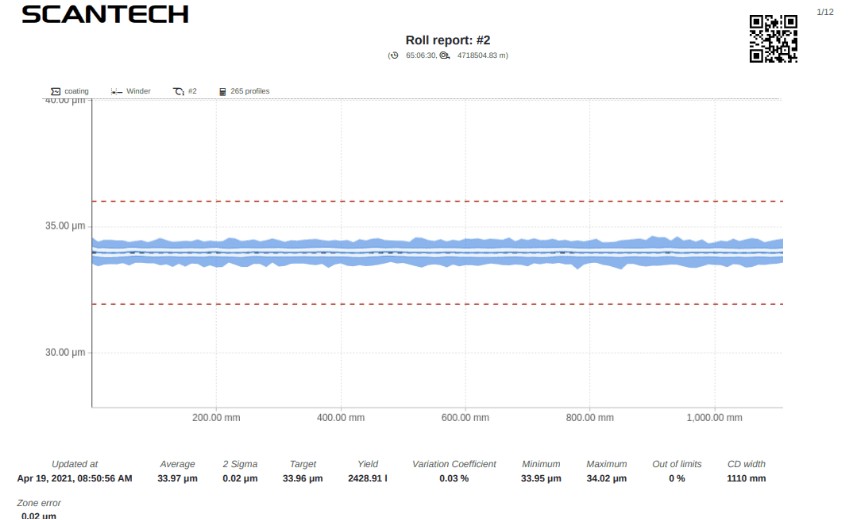

A Scantech roll report showing very minimal sheet thickness variation around the nominal target. Courtesy: Scantech

💰ROI: A Real-World Example

Let’s look at a conservative web gauging ROI calculation:

Scenario:

• Line runs 1,000 lbs/hr
• 12 hours/day, 5 days/week = 60 hours/week
• PET resin cost = $0.75/lb
• Web gauging system cost = $70,000

Let’s assume that using a measurement system enables the plant to confidently reduce average thickness by just 2% while staying within quality specs. That’s a modest improvement, especially if the current process has high variability.

Resin savings per week:

• 1,000 lbs/hr x 60 hr = 60,000 lbs/week
• 2% of 60,000 lbs = 1,200 lbs saved
• 1,200 lbs x $0.75 = $900/week in resin savings

Now let’s assume the savings are closer to 5% with better line control:

• 3,000 lbs/week saved x $0.75 = $2,250/week

Payback Period:

• $70,000 / $2,250/week = ~31 weeks or ~8 months

But the above calculation does not consider:

• Scrap roll reduction
• Lower customer rejections or chargebacks
• Less manual lab (labor) measurement time
• Improved uptime from feedback control
• Energy savings from higher line efficiency

In practice, most plants see ROI well within 6 months, especially when overpacking is substantial. Most film and sheet extrusion processors underestimate how much resin is lost through overpacking until real-time thickness measurement data becomes available.

You can also estimate potential savings using our Film & Sheet Thickness Measurement ROI Calculator.

🔍When to Consider a Gauging System

You should seriously consider installing a web gauging system if:

• Your product specs are tight and customer complaints are rising
• You lack real-time data to validate thickness consistency
• You’re running multiple resin types or recipes with variability
• Your team is overcompensating with excessive material use
• You want to reduce manual QC checks and lab delays

✅Final Thoughts

Accurate, real-time film and sheet thickness measurement is no longer a luxury. It is a competitive advantage. If you want to cut scrap, run thinner material, and improve your Cpk and Ppk, a web gauging system pays for itself quickly.

Web gauging system portfolio from Scantech

---

🌐Supplier Spotlight: Scantech

There are a handful of vendors in the web gauging market. However, Scantech is a global leader in extrusion measurement with more than 7,000 systems installed worldwide. Their advanced gauging solutions combine non-nuclear x-ray technology, robust mechanical designs, and operator-friendly software to deliver fantastic precision and reliability. From high-speed biaxially oriented film lines to thick sheet applications, Scantech systems help processors reduce scrap, improve consistency, and achieve rapid ROI. For a more in-depth overview of Scantech’s measurement technology, view this article or visit their website.

Scantech team members gather at their annual “R&D Days” event. By investing over twice the industry average in research and development, Scantech ensures its technologies remain at the forefront of extrusion measurement innovation.

📞 Take the Next Step

Whether you’re planning to invest in a gauging system or just want to “talk shop”, reach out to start a conversation. After all, what is a lack of gauge control really costing you?

Gauge Advisor supports film and sheet extrusion manufacturers across the Western United States with web gauging systems, automatic die bolt control integration, and process optimization.

We are the authorized sales partner for Scantech measurement systems supporting manufacturers with equipment selection, process optimization, and system integration.

If you’re evaluating web gauging systems for your film or sheet extrusion line, request application guidance using the form below.

---
