Many powder coating operations still depend on handheld gauges, destructive validation, or limited offline measurements. Those methods can work for basic checks, but they do not provide much visibility into coating distribution across complex parts or into process drift over time.
Contact gauges only inspect a few points and can miss local thin or heavy coating regions across the part.
Wheels, trays, housings, brackets, and formed parts are harder to inspect consistently with manual tools.
Offline inspection often finds problems only after parts are already coated and production time has been lost.
Automotive, battery, and industrial customers increasingly expect better traceability and inspection records.
For manufacturers trying to reduce rework, improve consistency, or automate inspection, non-contact coating thickness measurement can offer a much more scalable approach.
AIM Systems uses a photothermal coating thickness measurement principle to determine coating thickness without contacting the surface. This makes it attractive for manufacturers who want better repeatability, cleaner inspection workflows, and more consistent measurement on coated parts.

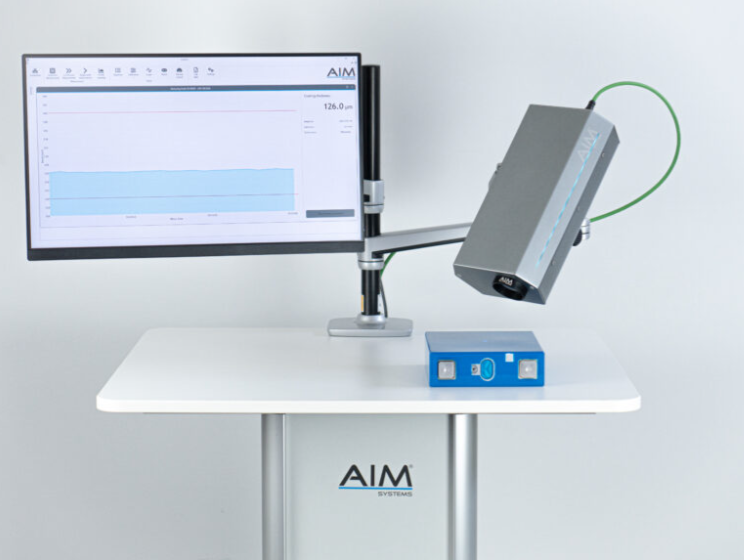

The CoatPro platform is designed for automated production environments and robot-assisted inspection. It can be used in applications where curved parts, motion, or production vibration make traditional manual inspection less consistent or less efficient.
Ethernet communication, Modbus TCP PLC integration, Power-over-Ethernet, and multiple measurement modes help the system fit into automated inspection cells and production data workflows.
If your team is trying to move from handheld checks toward automated or mapped inspection, this is the type of architecture worth evaluating.
For a deeper technical explanation of how this measurement method works, see our guide to photothermal coating thickness measurement technology.
| Measurement Principle | Photothermal (non-contact) |
| Typical Substrates | Steel, aluminum, coated metal parts |
| Coating Type | Powder coatings and protective coatings |

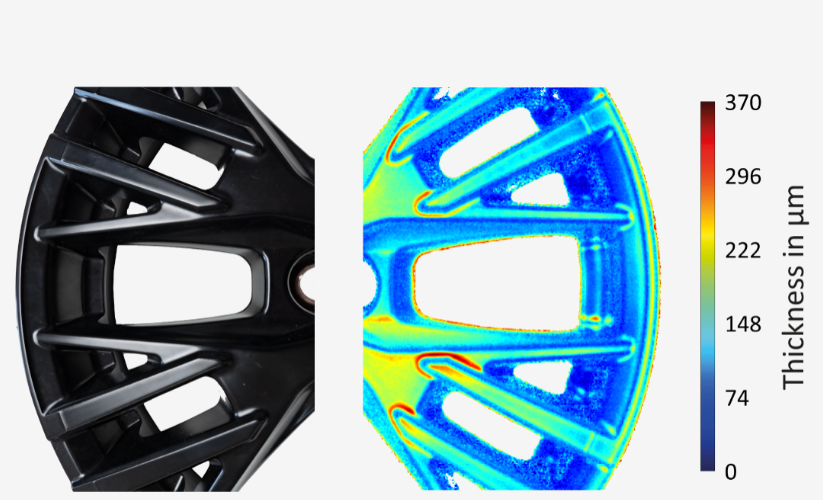

| Measurement Modes | Single-point, continuous scan, mapped inspection |
| Integration | Ethernet, Modbus TCP, PoE |
Powder coating thickness measurement is especially relevant in production environments where coating variation, part geometry, throughput, or customer quality requirements make manual inspection less effective.
Wheels, structural parts, brackets, housings, and coated assemblies where thickness distribution and documentation matter.
Battery trays, coated housings, and protective-coated metal components where consistency ties directly to product quality.
Powder coated fabricated parts, industrial hardware, architectural components, and production coating lines.
Applications where automation, mapping, and process verification are more valuable than simple pass/fail spot checks.
If the goal is better process understanding, fewer quality escapes, or more confidence in coating uniformity, this category is often worth evaluating.
Convert between coating thickness, coating weight, and density for engineering calculations and specification review.
Estimate the return from improved coating consistency, reduced scrap, better process visibility, and fewer quality escapes.
Review broader coating thickness and coating weight measurement technologies supported across AIM Systems and Scantech applications.
Gauge Advisor is the official sales and service partner for AIM Systems to deliver non-contact coating thickness measurement solutions for demanding production environments. AIM’s photothermal systems support powder coating inspection, automated measurement, thickness mapping, and robot-assisted workflows for coated parts and complex geometries.
Send your coating type, typical thickness range, part geometry, substrate, line configuration, and whether you need single-point verification, robotic inspection, or mapped thickness data. We will help you determine the most practical measurement approach for your application. Not sure about your substrate? We offer application testing to verify measurement repeatability on your specific part.
